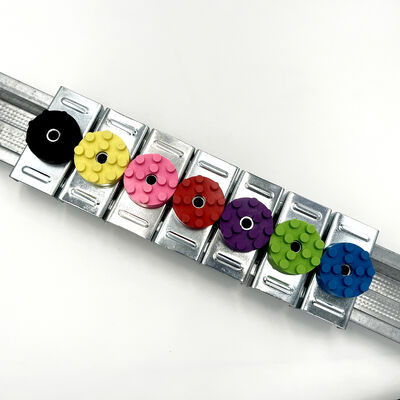

RSIC-1 Resilient Sound Isolation Clip with STC 65 Rating, 36-lb Load Capacity, and UL Fire-Rated for Superior Soundproofing

RSIC‑1 Resilient Sound Isolation Clip – High‑Performance Acoustic Decoupler for Walls & Ceilings - Sound Insulation Clip

RSIC‑1 resilient sound isolation clip decouples drywall from framing to boost STC ratings by 15–20 points. Ideal for wood/steel/concrete walls & ceilings; UL fire‑rated, 36‑lb load capacity, easy installation.

• Superior Acoustics: Adds 15–20 STC points to wall/ceiling assemblies; lab‑tested STC 57–64
• High Load Capacity: 36‑lb acoustical design load per clip; supports up to two layers of 5/8” gypsum board at 24” × 48” O.C.
• Universal Compatibility: Works with wood, steel, CMU, and concrete framing
• UL Fire‑Rated: Approved for 1–4 hour fire‑resistive assemblies
• Low‑Profile Design: Maximizes interior space; ideal for new construction & retrofits
• Cost‑Effective: Outperforms resilient channel while reducing installation complexity

• Multi‑family apartments & condos
• Home theaters, music rooms, bedrooms
• Basement conversions, home offices

• Hotels, motels, hospitality spaces
• Offices, conference rooms, open workspaces
• Schools, universities, classrooms
• Recording studios, podcast rooms, auditoriums
• Restaurants, bars, nightclubs
• Healthcare facilities, medical exam rooms

• Manufacturing plants, machinery enclosures
• HVAC & equipment vibration isolation

1. Spacing: Install clips max 48” O.C. horizontally; 24” O.C. vertically
2. Fastening: Use only approved screws (no nails) – min 120‑lb pull‑out/shear strength

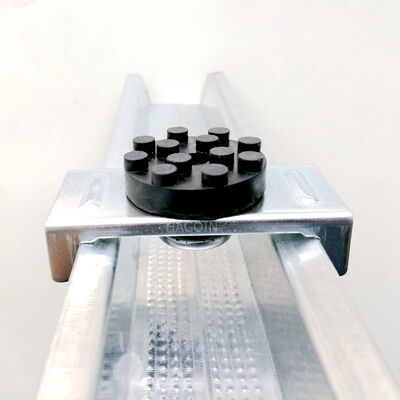

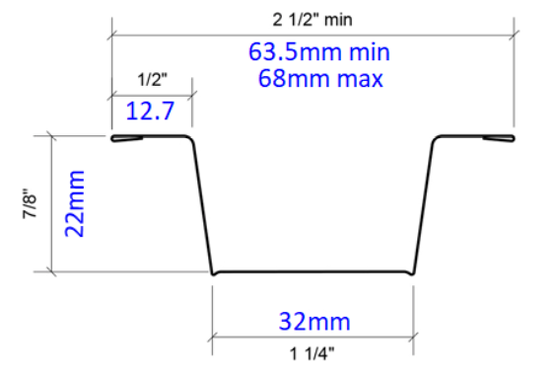

3. Channel: Snap 7/8” hat channel into RSIC‑1 clips; secure drywall to channel
4. Seal: Use fire‑rated acoustical sealant at perimeter joints for optimal performance
5. Load: Add extra clips for heavier assemblies (e.g., triple drywall)
