A50R Ceiling Isolation Hangers Gypsum Board Sound Proofing Acoustic Panel Hangers

Product Description

acoustic ceiling sound isolation hanger Drop Ceiling Spring Hanger

FEATURES:

• Easily works with all hanger wire or hooks.
• Easy installation into new or existing ceiling systems.
• Acoustically tested for STC and IIC.
• Does not reduce the load capacity of the ceiling system.
• Suitably isolates the ceiling system from the structure to reduce structure and airborne noise.
• Max Deflection: 3/16"
• Load capacity: 65 lbs/hanger

Direction for use

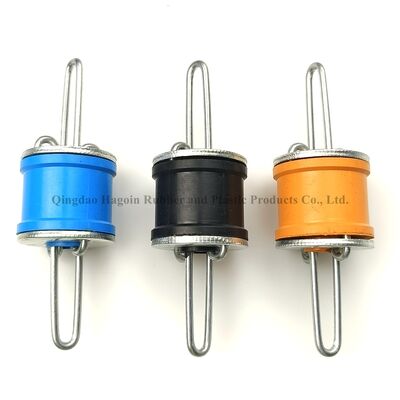

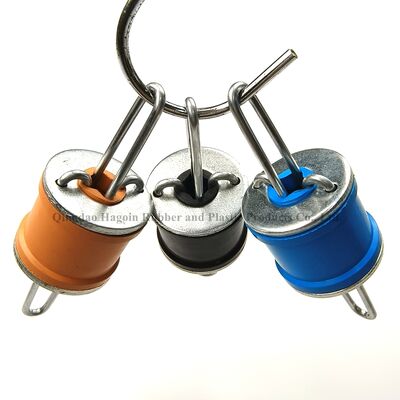

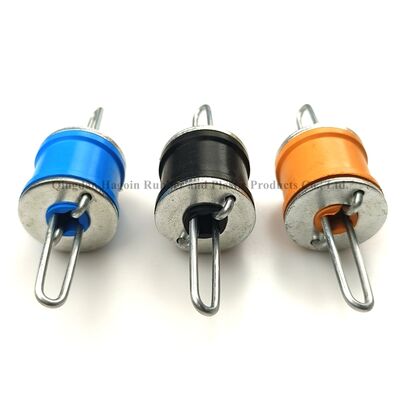

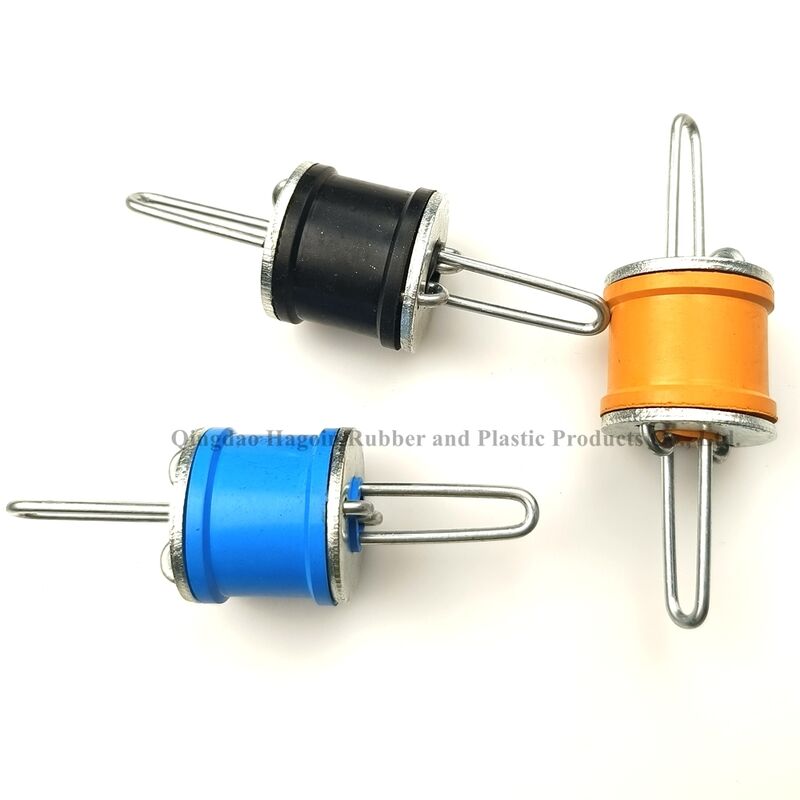

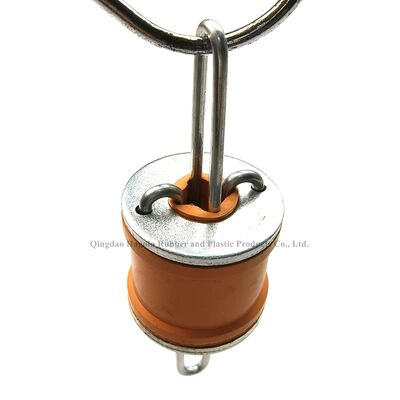

Resilient Sound Isolation Hangers are used to absorb sound vibrations in drop or suspended ceiling applications. Place one sound isolation hanger at each ceiling suspension point. The sound isolation hanger can be wired or hooked into at each end. This specific drop ceiling hanger (Red) can take a load of 65lbs each and performs better than the heavier rated hangers also available. A heavier rated hanger (Black/Blue) will under perform if installed in a lighter weight ceiling structure due to the use of more rigid and dense rubber.

Sound Isolation clip specifications:

Acoustical design load	36 Lbs
Total deflection	3 mm
Double deflection	Yes (1.5mm)
Made with Recycled content	Yes
Adjustable	No
Cavity Min	1-1/2’’
Cavity Max	4-1/2’'
Adjustable limit	4''
Use on ceiling	Yes
Use on walls	Yes
New Construction	Yes
Retro Fit	Yes
Made in China	Yes

Packing&Shipping

Plastic bag packing, put into nylon or carton, outside is stretch film, Stick the shipping marks, We also can according to the customer's requirement.
