Resilient Sound Isolation Clips
Created with Pixso.

Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated Sound Clips Drywall

Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated Sound Clips Drywall

Brand Name: HAGOIN
Model Number: RSIC-1
MOQ: 1000
Price: $0.28-0.60
Payment Terms: T/T
Supply Ability: 1000 pieces per day
Detail Information
Place of Origin:
Shandong, China
Warranty:
5 Year
Material:
Rubber, Rubber+zinc Plated Metal
Feature:
Noise Isolation
After-sale Service:
Online Technical Support, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design
Application:
Villa
Design Style:
Modern
Type:
Resilient
Size:
According To The Drawing
Delivery Time:
With 15 Days
Packing:
Plastic Bag, Nylon Bag, Carton Or According To Customer Requirement.
Certificate:
CE,ISO9001,LFGB, ROHS,
Feature 1:
Elastic And Long Life
Feature 2:
Stock
Feature 3:
Resilent
Feature 4:
Vibration Isolation
Feature 5:
Easy Assembly
Packaging Details:
cartons and pallet
Highlight:

RSIC-1 resilient sound isolation clips

,

zinc plated drywall sound clips

,

rubber installation clips for drywall

Product Description
Resilient Mount Clip Rubber Zinc Plated Metal Vibration/Noise Isolation Acoustic Wall/Ceiling Systems Easy Assembly Modern
Product Description
Specification
item value
Warranty 5 years
After-sale Service Online technical support, Return and Replacement
Project Solution Capability graphic design, 3D model design
Application Fit for 1-5/8 inches from supporting structure, when 7/8-inch drywall furring channels
Design Style Modern
Place of Origin China
  Shandong
Brand Name Hagoin
Model Number RSIC-1
Type resilient
Material rubber+zinc plated metal
Size According to the Drawing
Delivery Time With 15 days
Packing Plastic bag, nylon bag, carton or according to customer requirement.
Certificate CE,ISO9001, UL94, ROHS,
Feature 1 elastic and long life
Feature 2 stock
Feature 3 resilent
Feature 4 Reduce vibration
Feature 5 easy assembly
Packing & Delivery
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall

100 pcs / Carton; Carton Size: 33cmx22cmx14cm ; 6.5 kgs / carton ; 224 cartons / pallet

Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall

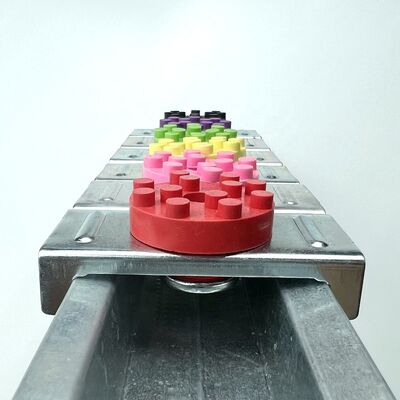

Rubber Material
* made of high resilient rubber, soft touch * UL94 V-0 approval.
* Low quality rubber becomes sturdy after 30 days, lose resilience.

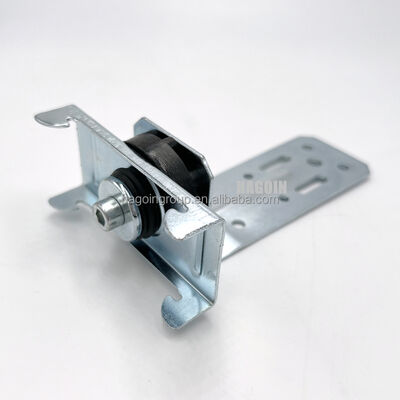

Steel Parts
* Made of high strength steel * thicker zinc plated, 48 hours salt spray test approval
* low quality steel will be bent and get rusty easily
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Features
* For use in wall and ceiling construction assemblies
* Reduces sound and vibration
* For use in new and retrofit construction
Technical Information

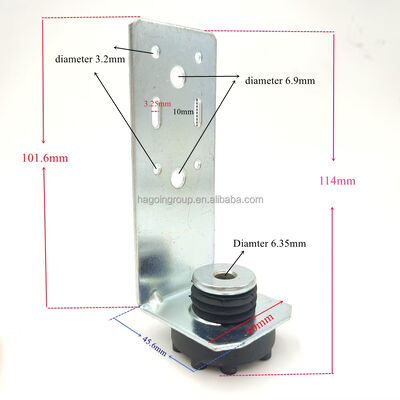

* Size: 3″ x 1-1/4″ x 1-7/16″ nominal

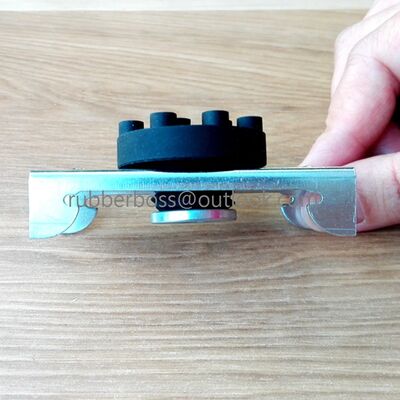

* Construction: Natural and manufactured rubber molded to isolate ferrule (zinc-electroplated steel) from 16 gauge galvanized or aluminum-zinc coated clip. Minimum of 12 micro-vibration controlling pedestals at point of contact with framing member.
* Projection: 1-5/8 inches from supporting structure, when 7/8-inch drywall furring channels are used.
* Intended use: For use with wall and ceiling construction assemblies to prevent sound and vibration transmission to improve STC
and IIC ratings
* Dead or Shear Load: Maximum design load of 36 pounds per each resilient sound isolation clip.
* Total Deflection: 3 mm
* Double Deflection: Yes (1.5 mm)
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall

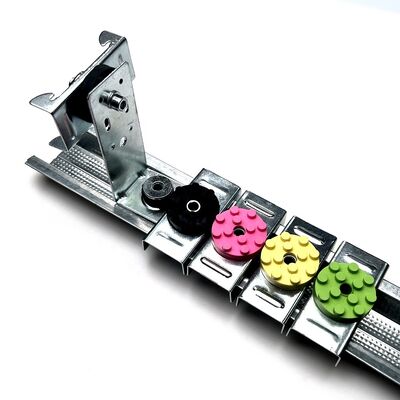

Ralated products - hat track
Fit for 1-5/8 inches from supporting structure, when 7/8-inch drywall furring channels
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Related Products : Nails
* Clip to Wood: #8 x 2-1/2 inch minimum size coarse thread screw.(Recommended #12 or #10 x 2-1/2 inch hex head)
* Clip to Steel: # 8 x 1-5/8 inch minimum size fine thread screw. (Recommended #12 or #10 x 1-5/8 inch hex head) * DO NOT fasten Resilient Sound Isolation Clips to framing members with nails. Use only approved screws.
Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Application Example :

Conference Center

Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Application Example

Theater

Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Application Example

Cinema

Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
Acoustic Soundproofing House

Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
CE certificate



Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated  Sound Clips Drywall
RoHS certificate
