Size Information
RSIC-1 clip 3’’ tall
RSIC-1 clip 1-1/4’’ deep
RSIC-1 and drywall furring channel 1-5/8’’ deep
Application
- Home Theaters
- Mechanical rooms Libraries
- Study Gyms
- Golf Rooms
- Master Suites
|
| Brand Name: | HAGOIN |
| Model Number: | RSIC-1 and RSIC-dc04 |
| MOQ: | 1000 |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pieces per day |

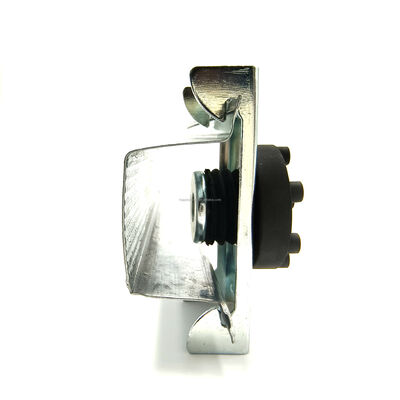

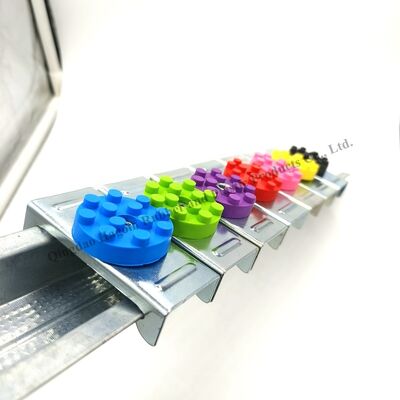

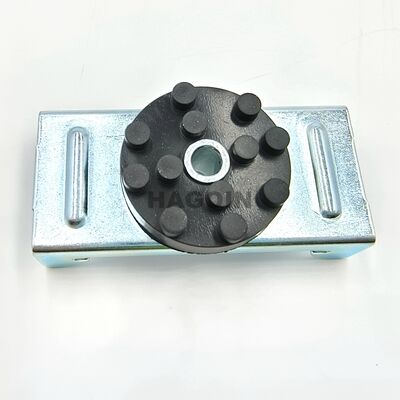

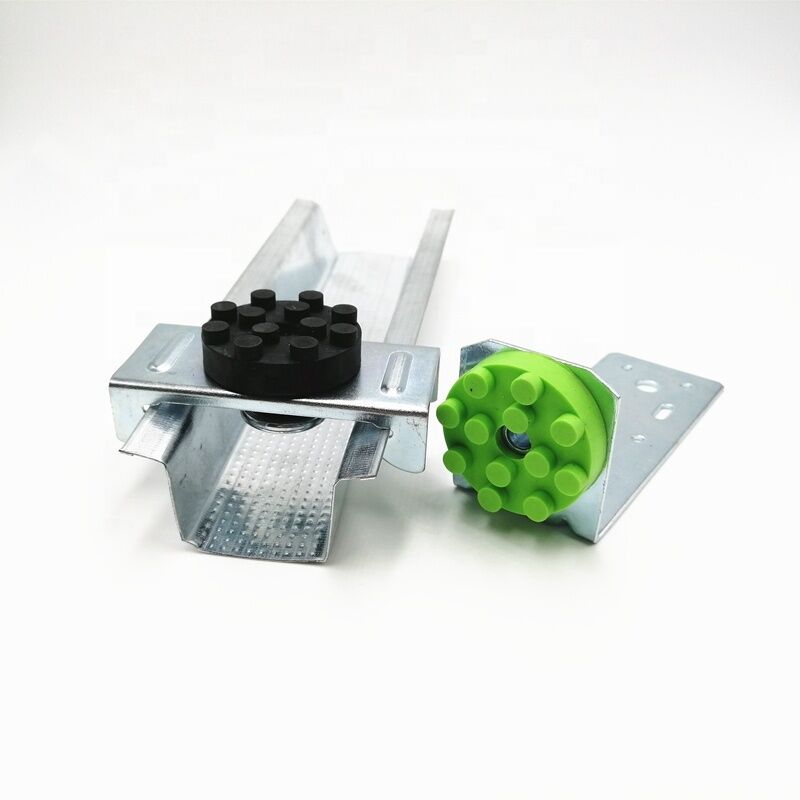

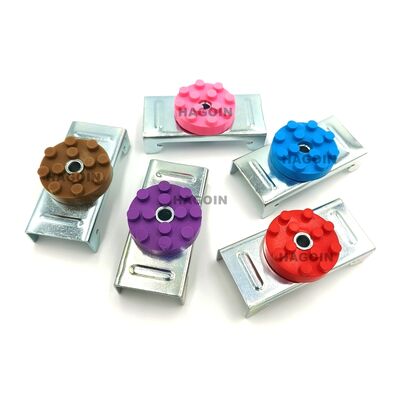

Resilient Sound Isolation Clips are designed to allow a decoupling separation between the walls and ceiling from the underlying framing studs and joists. When utilizing sound isolation clips for drywall installation, the drywall furring channels (“hat” channels) are attached to the clips and the clips are then fastened to the studs or joists, following the supplied instructions. Once installed, the drywall (or other wall material) is isolated from the framing. This significantly lowers the ability for sound, especially low frequency sound, from transmitting into the room where they're installed.
The DC04 series is a universal and versatile product line. The most common use is decoupling wall framing and ceiling systems. The DC04 can be used in new construction or retrofit. The DC04 should be used when items need to be acoustically decoupled for noise and vibration isolation.
| Acoustical design load | 36 Lbs |
| Total deflection | 3 mm |
| Double deflection | Yes (1.5mm) |
| Made with Recycled content | Yes |
| Low VOC treated | Yes |
| Adjustable | No |
| Cavity Min | 1-5/8’’ |
| Cavity Max | 1-5/8’’ |
| Adjustable limit | N/A |
| Use on ceiling | Yes |
| Use on walls | Yes |
| New Construction | Yes |
| Retro Fit | Yes |
| Made in China | Yes |
| Acoustical design load | 36 Lbs |
| Total deflection | 3 mm |
| Double deflection | Yes (1.5mm) |
| Made with Recycled content | Yes |
| Adjustable | No |
| Cavity Min | 1-1/2’’ |
| Cavity Max | 4-1/2’' |
| Adjustable limit | 4'' |
| Use on ceiling | Yes |
| Use on walls | Yes |
| New Construction | Yes |
| Retro Fit | Yes |
| Made in China | Yes |
RSIC-1 clip 3’’ tall
RSIC-1 clip 1-1/4’’ deep
RSIC-1 and drywall furring channel 1-5/8’’ deep
Height: 112mm
Width: 45*40mm
Depth: 26mm
Maximum Spacing: 48 inches on center Maximum Acoustical Design Load: 36 lbs
